Servo Drive Solution Based on HME-M7

- PLC

FX_PLC realizes the control system in autonomous and controllable entirely on software and hardware, which is available for aerospace and other industrial control fields.

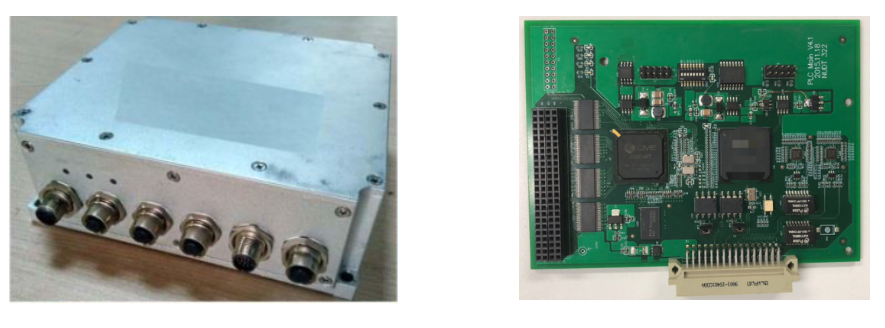

The hardware component of FX_PLC system includes master and slave module, both of which are configured with HME-M7 FPGA chip.

系统功能模块

FX_PLC system is composed of master, slave, software integrated development environment, users' interface design tool and real-time Ethernet system bus.

Technical Specifications
◆Master module

• Communicate with HMI, which supports the MODBUS standard protocol
• To implement the visual control function
• Master module is based on CAN Link Layer, complies with CANopen communication protocol
• Quick to response and high bandwidth, can meet the needs of data communication in the future

◆Slave module
- Digital I/O Module

• Complied with CIA401 protocol
• Apply to the fields including industrial site control, sequence control, logic control, etc.

- Power I/O module

• Complied with CIA401 protocol
• Apply to the fields including industrial site control, sequence control, logic control, etc.
• Available to drive small and medium power devices within 2A

- Analog I/O module

• Complied with CIA 402 protocol
• Apply to the continuous variable parameter control in industrial site control, such as pressure, temperature, flow, etc.
